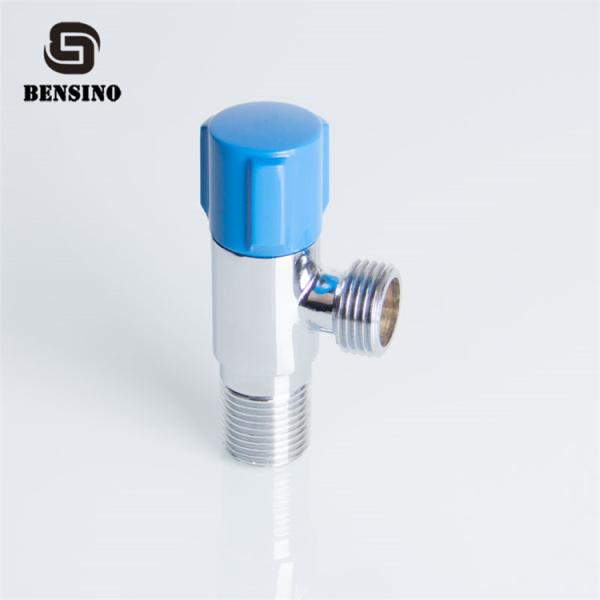

Blue Plastic Handle Chrome Plated Brass Angle Valve 1 2 X1 2 Water
Heater Service Valves
(Model - 213B)
►Product Description
Model | 213B |
Size | 1/2 inch |
Material | Blue PVC Handle,Copper Body |
Weight | 145g |

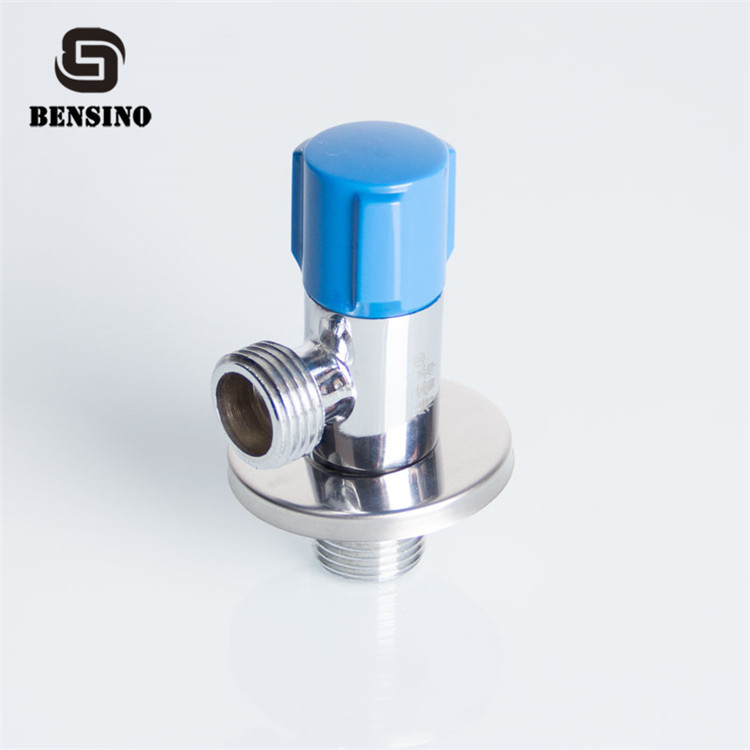

Accessories | Stainless Steel Decorative Cover |
Brand | BENSINO Or Customized Logo |
Style | Morden |
Surface Finish | Polished+Chromed Finish |
Opening Way | 1/4 Turn Quick Open |
Connection | Female Thread X Female Thread |
Fuction | Water Flow Adjustment |
Application | Toilet, Faucet, Washing Machine,Water Heater,Etc |
Quality Guarantee | 3 years |
►Product Features
1, High-Quality Brass
2, High Pressure Resistant Ceramic Valve Core
3, High Quality Sealing Washer
4, Polishing And Chrome Plating Process
5, Anti-Leakage
6, Accurate Thread,BSP Or NPT Standard
7, Good Tensile Strength
8, Heat-Resistant
9, Corrosion-Resistant Valve
10, Impact Wear-Resistance
11, Long Lifespan
12, Easy Installation
►Details
►Technical Specifications
Testing Pressure | 100% Tested |
Burst Test Pressure | Static Water Pressure Max,3.5Mpa |
Break Torque Test | ≥15N.M |
Lever Torque Test | 0.08-0.18N.M,Left And Right Rotation Torque Test When Static |
Sealing Test | Static Pressure 0.8Mpa,Holding Time 60S,No Deformation,No Leakage |
Flow Rate Test | The Flow Rate Is Tested Under 0.3PA,The Average Flow Rate 40L/Min |
Life Test | 500,000 Open And Close Cycles |
Maximum Temperature | 90 ℃ |
Max.Turnimg Angle | 90 Degree |
Working Pressure | 1-5 Bar |
►Product Function
1, Connection:Connect Water Inlet Ports Of Faucets, Toilets,
Washing Machines And Water Heaters,Etc.
2, Regulation:Water Flow Adjustment,Water Pressure Control.
3, Check: Close The Angle Valve When The Hose Leaks Or Other
Problems Occur.
